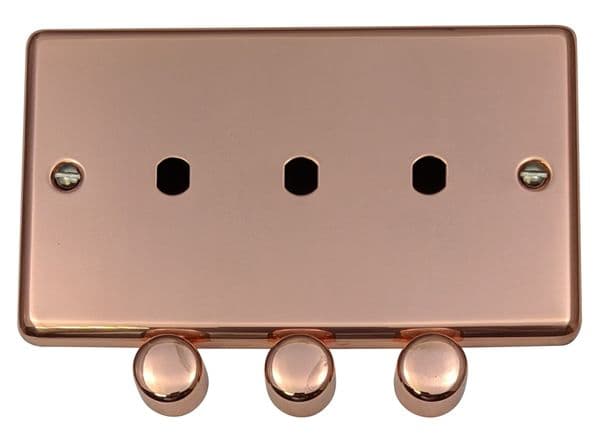

G&H CBC13-PK Standard Plate Bright Copper 3 Gang Dimmer Plate Only inc Dimmer Knobs

Part of the G&H Contour Plate range (also known as standard plate). The plate has curved edges and features a 6mm depth from front of plate to back. All single size plates measure 86mm x 86mm, double size plates measure 86mm x 146mm. The entire range fits into UK standard wall boxes. We recommend 35mm wall boxes for all dimmer switches, toggle switches, USB sockets and cooker switches and sockets. 47mm wall boxes for shaver sockets. 25mm wall boxes for everything else.

The plate is made from copper which is then polished and lacquered.

Technical details:

Rocker Light Switches:
Use as either 1 or 2 way.
1 gang intermediate also available which can be used if 3 or more switches are controlling the same circuit (Use 2 x 2 way switches with one or more intermediate switch).
Rated Amps: 10A.

Toggle Light Switches:
Use as either 1 or 2 way.
Intermediate options available which can be used if 3 or more switches are controlling the same circuit (Use 2 x 2 way switches with one or more intermediate switch).
Rated Amps: 20A.

Plug Sockets:
Rated Amps: 13A DP (Double Pole).

USB Sockets:
910/2910/3910: 2 x USB-A. 5V Output = 1 x 2.1A & 1 x 1A.
911/2911/3911: 1 x USB-A & 1 x USB-C. 5V Max Output (shared) = 3.1A.
913/2913/3913: 2 x USB-C. 5V Max Output (shared) = 4.2A. 5V Output (single) = 3.0A.
41B/41W: 1 x USB-A & 1 x USB-C. 5V Max Output (shared) = 3.1A.
42B/42W: 2 x USB-C. 5V Max Output (shared) = 3.1A.
43B/43W: 1 x USB-A (QC 18W MAX) & 1 x USB-C (PD 45W MAX).

Dimmer Switches:
Push on/off and turn to dim.
Use as 1 or 2 way (2 way only with an on/off switch).
Suitable for LED, halogen & incandescent.
LED: 1 to 10 LED bulbs (5-150W). 300W max load if used with halogen bulbs.
Use as 1 or 2 way (2 way only with an on/off switch).

20 Amp Switches:
Rated Amps: 20A DP (Double Pole).

45 Amp Switches:
Cooker Switch & Socket: 1 x 45A DP & 1 x 13A Socket.
Cooker Switch: 1 x 45A DP.

Fused Spur Switches:
Rated Amps: 13A.

Fan Isolator Switches:
Rated Amps: 10A Triple Pole.

Shaver Sockets:
Required back box depth: 47mm.
Rated Voltage: 115V~240V AC.

5 Amp Sockets:
Rated Amps: 5 Amp.

Dimmer Plates:
11-PK, 12-PK, 13-PK, 14-PK.
These are just plates and dimmer knob/knobs.
Use with any of our dimmer modules or your existing dimmer modules.

Euro Plates:
These are designed for euro insert modules to clip into (purchase separately).
161: Fits 1 x 25mm x 50mm module.
162: Fits 2 x 25mm x 50mm modules or 1 x 50mm x 50mm module.
164: Fits 4 x 25mm x 50mm modules or 2 x 50mm x 50mm module.

Grid Plates:
These are designed for G&H grid modules to clip into (purchase separately).
Only suitable for G&H grid modules (other brands will not fit).
Grid frame is supplied with the plate.

G&H Electrical Accessories are a British manufacturer of high quality switches, sockets and accessories which hold Made in Britain accreditation (with the exception of the Lexus screwless range, floor sockets, pull cords and brass and chrome plastic pattress boxes which are all imported). All G&H products are manufactured to the highest standard and are covered by a 10 year warranty. All plates come supplied with a pair of 30mm screws coloured to suit the plate.
