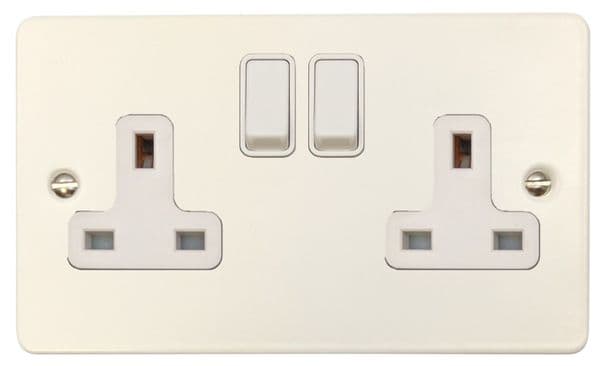

G&H FW10W Flat Plate Matt White 2 Gang Double 13A Switched Plug Socket
Part of the G&H Flat Plate range. The plate is just 1 mm thick. To avoid installation problems and to achieve a flush fitting all wall boxes must be fitted below the plaster depth. The plate is made from steel and powder coated matt white. It is a slight off-white not bright white.
G&H Electrical Accessories are a UK manufacturer of high quality switches and sockets. All G&H plates are manufactured to the highest standard from solid brass or steel and are covered by a 24 month warranty. All plates come supplied with a pair of 30mm screws coloured to suit the plate. The entire range fits into UK standard wall boxes (see below for depth recommendations).
Technical details:
Rocker Light Switches:
Plate size: 85mm x 85mm (1 gang, 2 gang & 3 gang)
Plate size: 145mm x 85mm (4 gang)
Use as 1 or 2 way (1 gang intermediate also available)
Required back box depth: 25mm or deeper
Rated Amps: 10A
Toggle Light Switches:
Plate size: 85mm x 85mm (1 gang & 2 gang)
Plate size: 145mm x 85mm (3 gang & 4 gang)
Use as 1 or 2 way (1 gang intermediate also available)
Required back box depth: 25mm or deeper
Rated Amps: 10A
Single & Double Plug Sockets:
Plate size: 85mm x 85mm (single)
Plate size: 145mm x 85mm (double)
Required back box depth: 35mm or deeper (wall boxes must be fitted below the plaster depth)
Rated Amps: 13A DP. USB Chargers: 1 side 1A & 1 side 2.1A
Dimmer Switches Rotary:
Push on/off and turn to dim.
Plate size: 85mm x 85mm (1 gang & 2 gang)
Plate size: 145mm x 85mm (3 gang & 4 gang)
Required back box depth: 35mm or deeper
400W: 60w minimum load, 400w maximum load. Halogen Only
700W: 60w minimum load, 700w maximum load. Halogen Only
LED: 1 to 10 LED bulbs (max 120W). 300W max load if used with halogen bulbs. V-Pro Trailing Edge.
Use as 1 or 2 way (2 way only with an on/off switch)
20 Amp Switches:
Plate size: 85mm x 85mm
Required back box depth: 25mm or deeper
Rated Amps: 20A DP (Double Pole)
45 Amp Switches:
Plate size: 85mm x 85mm (single)
Plate size: 145mm x 85mm (double with 13A socket)
Required back box depth: 35mm or deeper
Rated Amps: 45A DP (Double Pole)
Shaver Sockets:
Plate size: 145mm x 85mm
Required back box depth: 47mm
Rated Voltage: 115V~240V AC
2 & 5 Amp Sockets:
Plate size: 85mm x 85mm
Required back box depth: 25mm or deeper
Rated Amps: 2A / 5A
TV, Satellite, RJ45, BT, Fuse, Flex, Triax, Phono & Fan Isolator Sockets:
Plate size: 85mm x 85mm
Required back box depth: 25mm or deeper
Euro Plates:
Plate size: 85mm x 85mm (single)
Plate size: 145mm x 85mm (double)
These are empty designed for modular inserts to clip in.
Required back box depth: Depends on module type.
Blank Plates:
Plate size: 85mm x 85mm (single)
Plate size: 145mm x 85mm (double)
Required back box depth: 16mm or deeper
All purchases are covered by a full manufacturer’s warranty and are covered by our 30 day return period for unwanted products (please see our delivery and returns section for further information). All prices include VAT.
