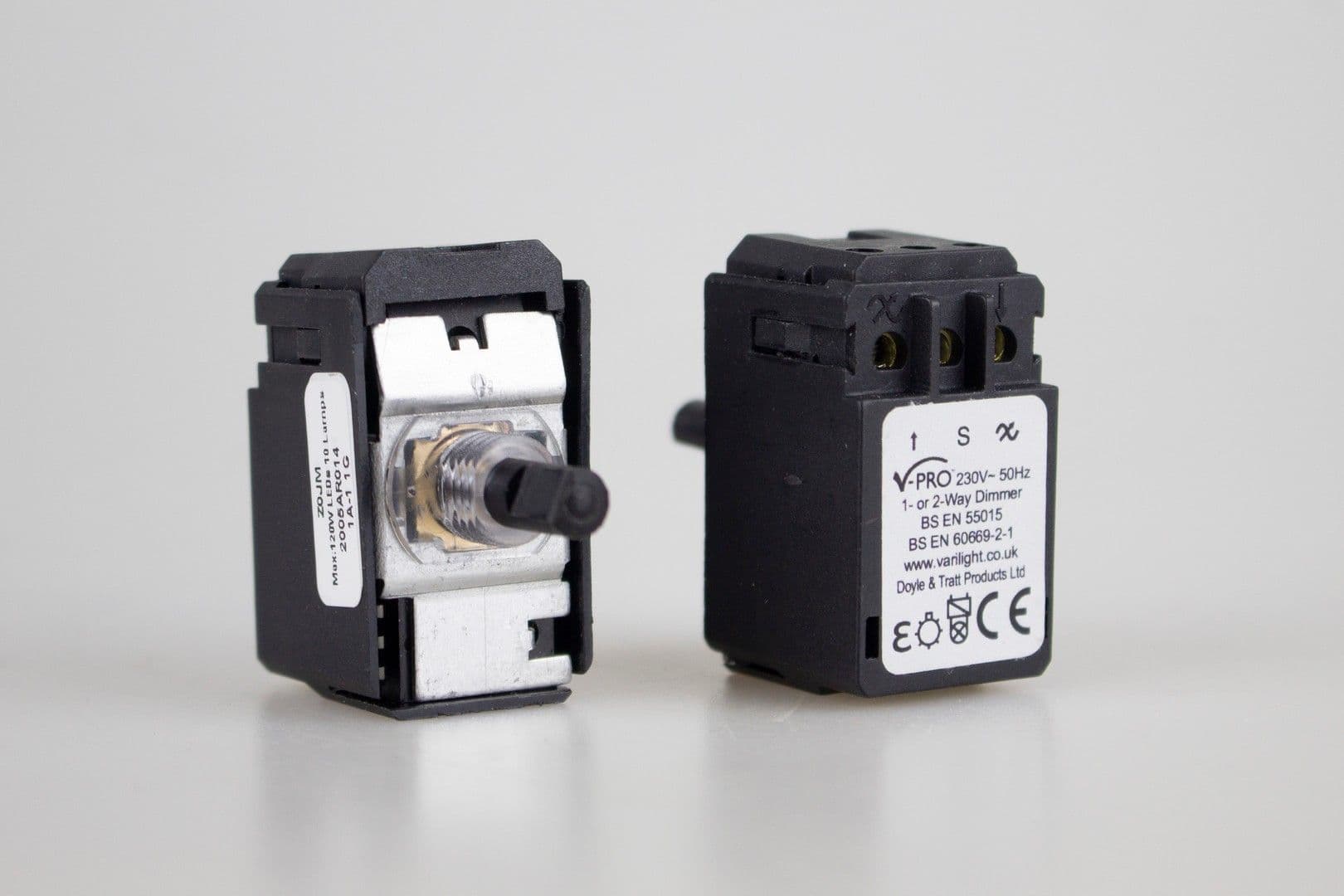

Product Description: V-Pro Smart Master Non-WiFi Dimmer 100W LED (Multi-Way with up to 2 Supplementary Controllers)

Range: Module

Finish: Matrix

Product Category: V-Pro Smart Module

Barcode: 5021575008678

Dimensions: 40x22x44mm

Net Weight: 48g

Gross Weight: 50g

Fixing Centres: N/A

Depth from Mounting Face:

Recommended Back Box Depth: N/A

Operating Voltage: 230v 50Hz

Maximum Load Rating: LED; 100W (Max. 10 LEDs)

Maximum Current Rating: 0.4A

Terminal (Live) Diameter: 3.2mm; Capacity: 3 x 1.5mm²

The V-Pro Smart master dimmer is suitable for 1-way circuits. For 2-way (or multi-way) circuits, use a V-Pro Smart master dimmer with one or more supplementary controllers. V-Pro Smart rotary dimmers cannot be used in conjunction with conventional switches in a 2-way circuit.

In 1-way lighting circuits the light(s) are controlled by one switch. This dimmer should replace that switch. The live wire must be connected to the terminal marked "LIVE" and the "load" wire to the terminal marked "LOAD". To fit 2, 3 or 4-gang dimmers treat each group of terminals at the back of the unit as a separate dimmer. You may also need a short length of wire to connect together the "LIVE" terminals if only one live wire is present. For 2-way or Multi-way circuits (where the light(s) are controlled by more than one switch) use this dimmer and any number of V-Pro Smart supplementary controllers (total cable length from the master to the last supplementary controller should be no more than 50m).

Full instruction leaflet can be viewed here.
