Range: Module

Product Category: V-Pro Module

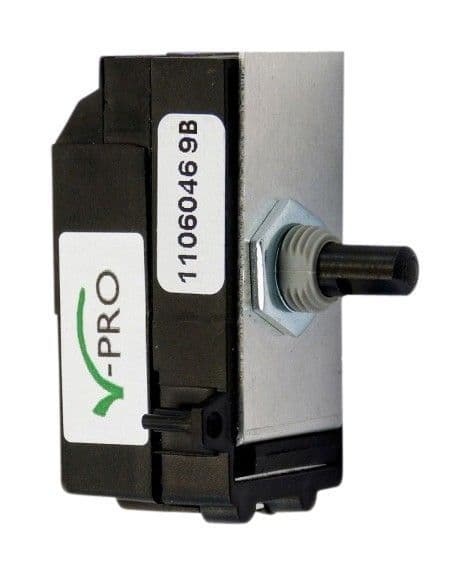

Product Description: 2-Way Push-on Push-off LED Replacement Dimmer Module Kit 1 x 0-120W (1-10 LEDs)

Features: Can be used to replace dimmer modules in existing faceplates or in the Matrix dimmer grid system. V-Pro intelligent dimming technology. Soft start feature and intelligent overload protection. Adjustable minimum brightness setting and choice of driving modes .

Dimensions: 52x26x42mm (Click here to see full dimensions)

Product Weight (g): 50

V-Pro dimmers are set to run in trailing-edge mode (MODE 1) by default. This versatile mode is suitable for most types of lighting recommended below. The alternative trailing-edge mode (MODE 3) may improve the performance of some dimmable LEDs. Some other lighting loads, including some types of LED, perform best in Mode 2. This is a simulated leading edge mode (not TRIAC) which is suitable for use with certain types of LED light.

Operating Voltage: 220/250V AC

Maximum Load Rating: LED; 120W (Max. 10 lamps)

Application Advice: Not suitable for use with non-dimmable fluorescent bulbs and tubes, wire-wound or toroidal transformers, TRIAC dimmable loads or electric motors

Varilight Guarantee (years): 10

Price includes VAT.

Instruction Leaflet: http://varilight.co.uk/leaflets/VARILIGHT_V-Pro_Dimmer_Instructions_JP008.pdf
